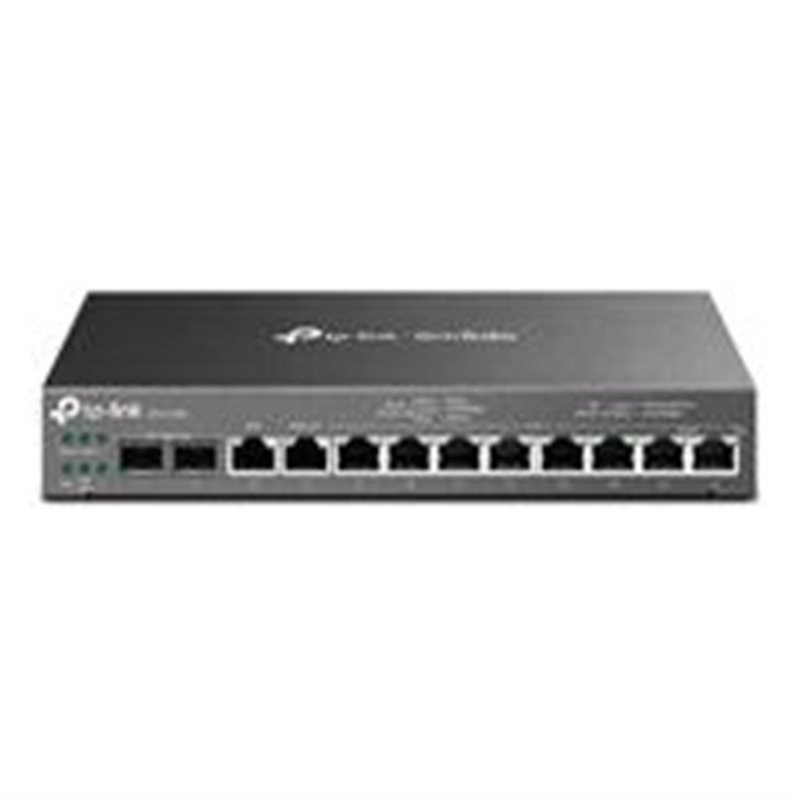

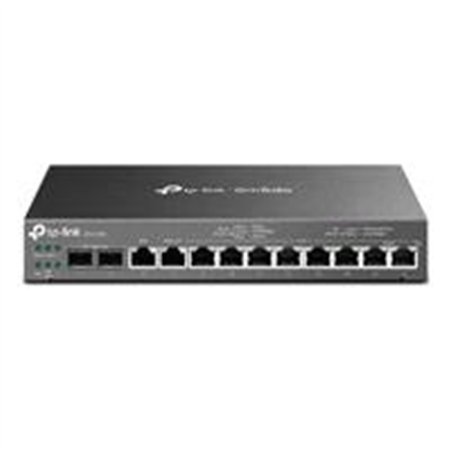

ROUTER | TP-LINK | ER7212PC | VPN GIGABIT 3 EN 1 (ROUTER, CONMUTADOR POE Y CONTROLADOR) | 4 PUERTOS WAN | 2 PUERTOS GIGABIT SFP

CARACTERÍSTICAS DE HARDWARE ESTÁNDARES Y PROTOCOLOS • IEEE 802.3, IEEE802.3U, IEEE802.3AB, IEEE802.3Z, IEEE 802.3X, IEEE 802.1Q • TCP/IP, DHCP, ICMP, NAT, PPPOE, NTP, HTTP, HTTPS, DNS, IPSEC, PPTP, L2TP, SNMP INTERFACE • 2 GIGABIT SFP WAN/LAN PORTS • 1 GIGABIT WAN PORT • 1 GIGABIT LAN/WAN PORT • 8 GIGABIT LAN PORTS MEDIOS DE RED • 10BASE-T: UTP CATEGORY 3, 4, 5 CABLE (MAX 100 M) EIA/TIA-568 100 AND #937; STP (MAX 100 M) • 100BASE-TX: UTP CATEGORY 5, 5E CABLE (MAX 100 M) EIA/TIA-568 100 AND #937; STP (MAX 100 M) • 1000BASE-T: UTP CATEGORY 5, 5E, 6 CABLE (MAX 100 M) CANTIDAD DE VENTILADORES FANLESS BOTÓN RESET BUTTON FUENTE DE ALIMENTACIÓN 53.5VDC/2.43A ADAPTER POE BUDGET 8 PORTS POE+ OUTPUT, 110 W POE BUDGET FLASH 8MB NOR + 4 GB EMMC DRAM 1 GB DDR3 LED PWR, SYS, CLOUD, POE MAX, SFP 1, SFP 2, WAN (SPEED, LINK/ACT), LAN (SPEED, LINK/ACT) DIMENSIONES (W X D X H) 8.9 × 5.2 × 1.4 IN (226 × 131 × 35 MM) PROTECCIÓN 4 KV SURGE PROTECTION CERCADO STEEL MONTAJE DESKTOP/WALL-MOUNT CONSUMO MÁXIMO DE ENERGÍA • 133.2W WITH POE MAX • 13.88W WITHOUT POE RENDIMIENTO SESIONES CONCURRENTES 24,980 NEW SESSIONS /SECOND 1,900 NAT (STATIC IP) 935.5 MBPS / 942.1 MBPS NAT(DHCP) 940.2 MBPS / 941.7 MBPS NAT(PPPOE) 913.1 MBPS / 935.2 MBPS NAT (L2TP) 545.0 MBPS / 912.7 MBPS NAT (PPTP) 523.0 MBPS / 912.8 MBPS RENDIMIENTO VPN IPSEC AES256: 168.5 MBPS OPENVPN 34 MBPS L2TP VPN THROUGHPUT • UNENCRYPTED: 845.3 MBPS • ENCRYPTED: 333.2 MBPS PPTP VPN THROUGHPUT • UNENCRYPTED: 1012.6 MBPS • ENCRYPTED: 401.4 MBPS 66 BYTE PACKET FORWARDING RATE 154,069 PPS / 156,977 PPS 1,518 BYTE PACKET FORWARDING RATE 81,193 PPS / 81,193 PPS FUNCIONES BÁSICAS WAN CONNECTION TYPE • STATIC IP • DYNAMIC IP • PPPOE • PPTP • L2TP MAC CLONE MODIFY WAN MAC ADDRESS DHCP • DHCP SERVER • DHCP ADDRESS RESERVATION • MULTI-IP INTERFACES • MULTI-NET DHCP IPV6 SUPPORT VLAN 802.1Q VLAN IPTV IGMP V2/V3 PROXY FUNCIONES AVANZADAS ACL IP/PORT/PROTOCOL/DOMAIN NAME FILTERING ADVANCED ROUTING • STATIC ROUTING • POLICY ROUTING BANDWIDTH CONTROL IP/PORT-BASED BANDWIDTH CONTROL EQUILIBRIO DE CARGA • INTELLIGENT LOAD BALANCE • APPLICATION OPTIMIZED ROUTING • LINK BACKUP • ONLINE DETECTION NAT • MULTI-NET NAT • VIRTUAL SERVER • NAT-DMZ • FTP/H.323/SIP/IPSEC/PPTP ALG • UPNP LÍMITE DE SESIÓN IP-BASED SESSION LIMIT VPN SSL VPN - IPSEC VPN • 20 IPSEC VPN TUNNELS • LAN-TO-LAN, CLIENT-TO-LAN • MAIN, AGGRESSIVE NEGOTIATION MODE • AES128, AES192, AES256 ENCRYPTION ALGORITHM • IKE V1/V2 • SHA1, SHA2 AUTHENTICATION ALGORITHM • NAT TRAVERSAL (NAT-T) • DEAD PEER DETECTION (DPD) • PERFECT FORWARD SECRECY (PFS) PPTP VPN • PPTP VPN SERVER • PPTP VPN CLIENT (10) • 16 TUNNELS • PPTP WITH MPPE ENCRYPTION L2TP VPN • L2TP VPN SERVER • L2TP VPN CLIENT (10) • 16 TUNNELS • L2TP OVER IPSEC OPENVPN • OPENVPN SERVER • OPENVPN CLIENT (10)§ • 16 OPENVPN TUNNELS SEGURIDAD FILTERING URL FILTERING ARP INSPECTION - DEFENSA DE ATAQUE • TCP/UDP/ICMP FLOOD DEFENSE • BLOCK TCP SCAN (STEALTH FIN/XMAS/NULL) • BLOCK PING FROM WAN CONTROL DE ACCESO SOURCE/DESTINATION IP BASED ACCESS CONTROL AUTENTICACIÓN AUTENTICACIÓN WEB • NO AUTHENTICATION • SIMPLE PASSWORD • HOTSPOT (LOCAL USER / VOUCHER / SMS / RADIUS) • EXTERNAL RADIUS SEVER • EXTERNAL PORTAL SEVER ADMINISTRACIÓN OMADA APP YES. CENTRALIZED MANAGEMENT YES. CLOUD ACCESS YES. SERVICIO DYNAMIC DNS (DYNDNS, NO-IP) MANTENIMIENTO • WEB MANAGEMENT INTERFACE • REMOTE MANAGEMENT • EXPORT AND IMPORT CONFIGURATION • SNMP V1/V2C/V3 • SYSLOG SUPPORT ZERO-TOUCH PROVISIONING - MANAGEMENT FEATURES • AUTOMATIC DEVICE DISCOVERY • INTELLIGENT NETWORK MONITORING • ABNORMAL EVENT WARNINGS • UNIFIED CONFIGURATION • REBOOT SCHEDULE • CAPTIVE PORTAL CONFIGURATION • MANAGEMENT UP TO 2 SWITCHES, AND 10 EAPS OTROS CERTIFICACION CE, FCC, ROHS CONTENIDOS DEL PAQUETE • ER7212PC • POWER ADAPTER • POWER CORD • QUICK INSTALLATION GUIDE REQUISITOS DEL SISTEMA • MICROSOFT WINDOWS 98SE, NT, 2000, XP, VISTA™ OR WINDOWS 7/8/8.1/10 • MAC OS, NETWARE, UNIX OR LINUX AMBIENTE • OPERATING TEMPERATURE: 0 °C TO 45 °C (32 °F TO 113 °F) • STORAGE TEMPERATURE: -40 °C TO 70 °C (-40 °F TO 158 °F) • OPERATING HUMIDITY: 10% TO 90% NON-CONDENSING • STORAGE HUMIDITY: 5% TO 90% NON-CONDENSING|• ENRUTADOR 3 EN 1: INTEGRA EL ROUTER, EL INTERRUPTOR POE Y EL DRIVER OMADA POR COMPLETO • HARDWARE PROFESIONAL: CPU DE DOBLE NÚCLEO DE 1.2 GHZ CON MEMORIA DDR3 DE 1 GB QUE PROPORCIONA UN RENDIMIENTO ESTELAR PARA HASTA 12 PUERTOS GIGABIT • HASTA 4 PUERTOS WAN ETHERNET: EQUIPADO CON 2 PUERTOS GIGABIT SFP WAN/LAN, 1 PUERTO GIGABIT RJ45 WAN Y 1 PUERTO GIGABIT RJ45 WAN/LAN • 110W POE PRESUPUESTO: 8× 802.3AT/AF-COMPATIBLE POE+ RJ45 PUERTOS LAN PRODUCEN UNA FUENTE DE ALIMENTACIÓN TOTAL DE 110W • ACCESO A LA NUBE: EL ACCESO REMOTO A LA NUBE Y LA APLICACIÓN OMADA OFRECEN UNA GESTIÓN CENTRALIZADA EN LA NUBE DE TODA LA RED DESDE DIFERENTES SITIOS, TODO CONTROLADO DESDE UNA SOLA INTERFAZ EN CUALQUIER LUGAR, EN CUALQUIER MOMENTO.
