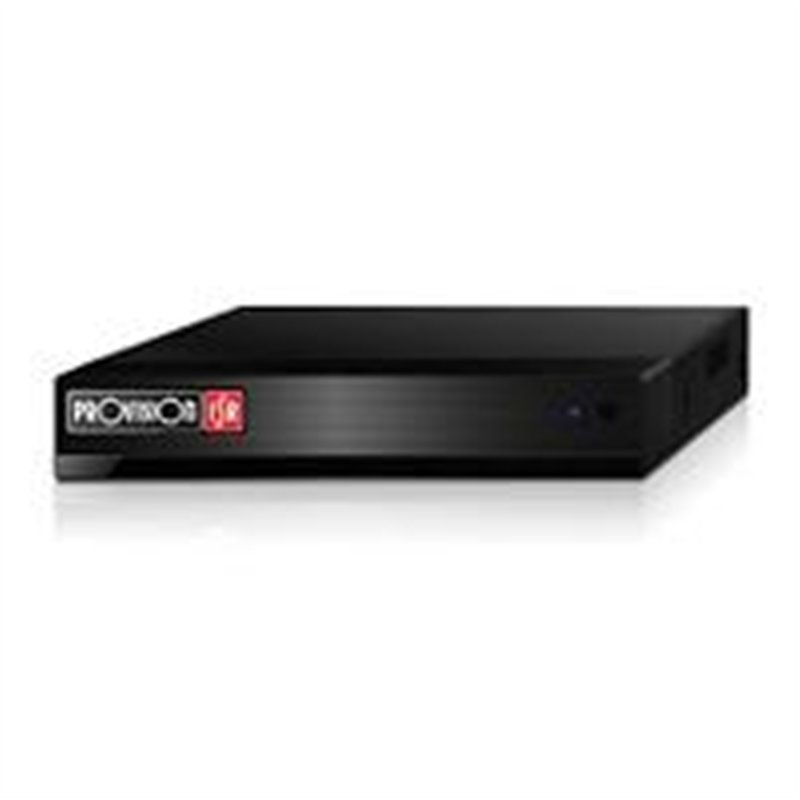

DVR / PROVISION ISR / SH-16200A5N-5L(1U)-V2 / 16 CANALES + 8 IP / HIBRIDO ALL IN AHD / CVI / TVI / CVBS + IP / RS-485

SH-16200A5N-5L(1U)-V2 VIDEO: INPUT: 16CH STANDARD BNC + 8CH IP (OVER NETWORK) OUTPUT: HDMI(1920X1080), VGA (1280X1024, 1024X768), CVBS(SPOT)                RECORDING: IP: 5MP AND LOWER: 25/30FPS PER CHANNEL AHD: 5MP LITE: UP TO 10FPS PER CHANNEL, 4MP LITE / 2MP: UP TO 12/15FPS PER CHANNEL, 2MP LITE: UP TO 25/30FPS PER CHANNEL TVI: 5MP LITE: UP TO 10FPS PER CHANNEL, 4MP LITE / 2MP: UP TO 12/15FPS PER CHANNEL, 2MP LITE: UP TO 25/30FPS PER CHANNEL CVI: 4MP LITE / 2MP: UP TO 12/15FPS PER CHANNEL, 2MP LITE: UP TO 25/30FPS PER CHANNEL CVBS: 960H: UP TO 25/30FPS PER CHANNEL PLAYBACK:16 CHANNEL SIMULTANEOUSLY (LOCAL) 8 CHANNEL SIMULTANEOUSLY (REMOTE) ANALYTICS: FOR IP CHANNELS: LINE CROSSING (WITH DIRECTION CHOICE), STERILE AREA, ITEM MONITORING, CAMERA TAMPERING, SMART SEARCH FOR HD ANALOG CHANNELS: LINE CROSSING (NO DIRECTION CHOICE), STERILE AREA, SMART SEARCH BANDWIDTH: INCOMING: 32MBPS OUTGOING: 96MBPS AUDIO: INPUT: 8 CHANNEL (RCA) + IP CAMERAS INPUTS OUTPUT: 1 CHANNEL (RCA) + IP CAMERAS INPUTS 2-WAY AUDIO STORAGE:2 X SATA (UP TO 8TB) + 1 X E-SATA (8TB) USB PORT: 2 X USB2.0 NETWORK: RJ-45: 100MBPS ALARM: INPUT: 16CH + IP CAMERAS INPUTS OUTPUT: 4CH + IP CAMERAS OUTPUTS PTZ / KEYBOARD:1 X RS485 PROTOCOL: PELCO D, PELCO P, SAMSUNG, VISCA, ONVIF, COC|5MP LITE • ENTRADA: BNC ESTANDAR DE 16 CANALES + IP DE 8 CANALES (A TRAVES DE RED) • HIBRIDO TODO EN 1” (AHD / CVI / TVI / CVBS + IP) • SALIDA: HDMI (1920X1080), VGA (1280X1024, 1024X768), CVBS( SPOT) • ENTRADA/SALIDA DE AUDIO • ENTRADA/SALIDA DE ALARMA • RS-485
